Assemblages met micro-thermo-elektrische koelers

Inleiding

The Assemblies with Micro-thermoelectric Coolers from X-Meritan represent a sophisticated integration of micro-thermal management and precision packaging technology. We use our key advantage technology to mount thermoelectric coolers in standard or specially designed housings, including Thermoelectric Cooling for BTF Laser Packages, TO-8, and TO-39. By seamlessly integrating modules into metal-glass or metal-ceramic packages, X-Meritan provides the critical thermal stability required for high-performance laser diodes, detectors, and sensors used in modern telecommunications and sensing applications.

We specialize in Micro-TEC Integration in TO Packages and other high-integrity enclosures, providing advanced solid-state cooling solutions for optoelectronic components. Our expert team ensures that every unit meets stringent reliability standards, delivering high-performance Custom TEC Assemblies in BOX Packages for Optoelectronics to global industrial and aerospace partners directly from our specialized factory.

Verpakkingen en services beschikbaar

Precisie NAAR montage:Assemblages met micro-thermo-elektrische koelers are meticulously mounted onto TO headers with various pin configurations to meet the specific requirements of IR and XRF detectors.

Ondersteuning voor krachtige lasers:Het omvat gespecialiseerde montage voor HHL- en BTF-pakketten, die zijn ontworpen om de hoge thermische belastingen aan te kunnen die gepaard gaan met lasermodules met hoog vermogen.

HTCC- en LTCC-technologie:Het maakt gebruik van metaal-keramische verpakkingstechnologieën voor fotodetectorarrays, waardoor een robuuste en thermisch efficiënte omgeving wordt geboden voor complexe halfgeleiderapparaten.

Gezamenlijke ontwikkelingsverpakkingen:It offers a collaborative development process from concept design and material selection to prototyping, ensuring the final assembly complies with all technical specifications.

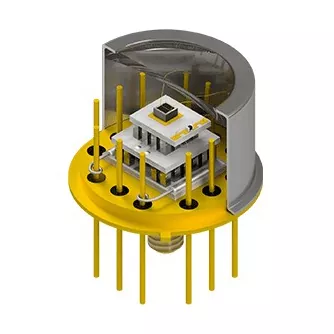

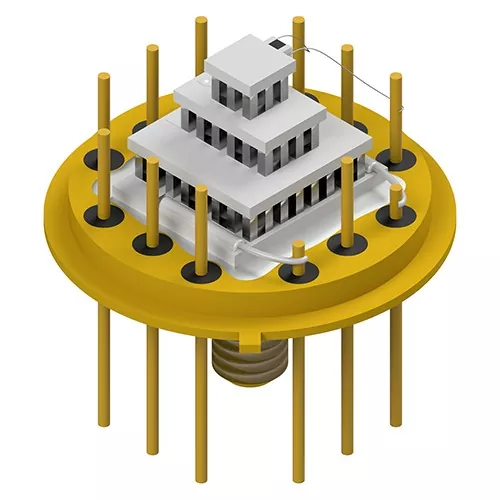

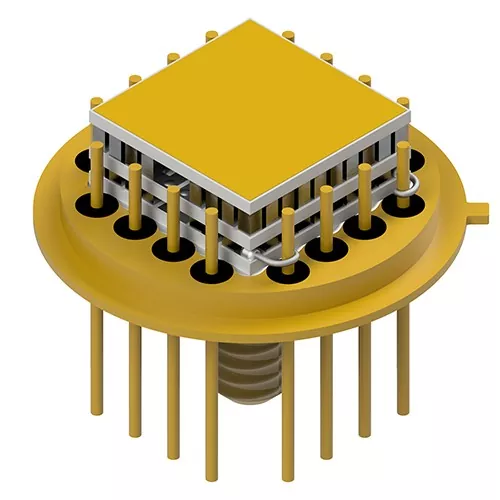

TO (transistor form) is the most commonly used packaging form for telecommunication, infrared, XRF and other types of detectors. The basic material of the TO-13 type housing is usually Kovar alloy or nickel-gold plated steel. X-Meritan Company produces thermocouple components for TO connectors with different pins. The pins of these connectors can be in the standard (cylindrical) shape, or in flat-ended or spike shapes to simplify wire welding.

As shown in the table, we can provide the TO service. Our installation service is very flexible. We have very reliable TO suppliers who can provide high-quality products. You can also entrust us with the TO service for installation.

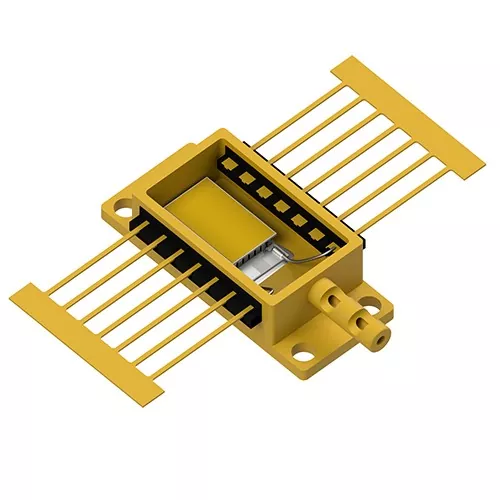

In addition to the TO type packaging, we can also offer some other more complex large-scale packaging products, such as HHL, BTF, PS-28, TOSA and HTCC&LTCC, etc. This provides customers with more choices.

The main applications of these packaging include laser modules, high-power laser modules, detectors and sensors. TOSA is more common in the telecommunications field. HTCC and LTCC types of metal ceramic packaging are used for photodetector arrays. X-Meritan has the technology of installing thermoelectric modules in standard packaging to reduce the dark noise of sensor arrays.

Producteigenschappen

● Assemblages met micro-thermo-elektrische koelers

This solution offers precise assembly of micro-modules into high-integrity packages, ensuring optimal thermal contact and long-term stability for sensitive components.

● Uitgebreide pakketcompatibiliteit

Het ondersteunt een breed scala aan industriestandaard headers, waaronder TO-8-, TO-39-, BTF- en BOX-pakketten, waardoor het veelzijdig is voor diverse opto-elektronische toepassingen.

● Geavanceerde materiaalintegratie

Het maakt gebruik van Kovar, vernikkelde en vergulde staalmaterialen om superieure materiaalcompatibiliteit en hoge vacuümintegriteit in detectorbehuizingen te garanderen.

● Minimaliseerde donkere ruis

It provides active cooling that effectively reduces the dark noise of sensor arrays, significantly improving the signal-to-noise ratio in photodetector applications.

● Flexibele headerconfiguraties

It features customizable header pins, including standard cylindrical, flattened ends, or nail shapes, to simplify wire bonding and integration into customer-specific PCBs.

Over X-Meritan

1. X-Meritan maakt gebruik van een decennium aan gespecialiseerde kennis in de thermo-elektrische industrie om uiterst betrouwbare assemblages met micro-thermo-elektrische koelers te leveren.

2. Het maakt volledig op maat gemaakte ontwerpen mogelijk volgens de eisen van de klant, waardoor zelfs de meest complexe uitdagingen op het gebied van thermisch beheer worden aangepakt.
3. It adheres to strict performance and reliability standards, making our products suitable for mission-critical aerospace and industrial electronic application scenarios.
4. Het combineert Chinese productie-efficiëntie met hoogwaardige techniek om de beste kosten-prestatieverhouding te leveren voor professionele koelassemblages wereldwijd.
